Dump Truck Hire Sydney (10T Capacity)

img-dump-truck
Dump Truck Hire Overview

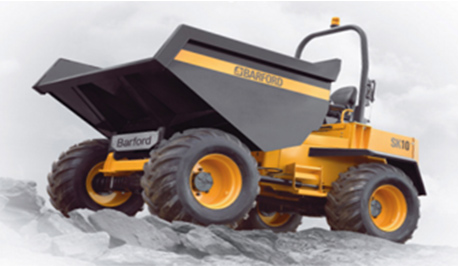

Barford SK10 Front Tip Mini Articulated Site Dumpers For Hire
Earth Moving Hire Australia, provides a specialised fleet of late model articulated all terrain site dumper trucks with rotating swivel and front tip skip bins ideally suited for difficult access all terrain sites.

Boost your earth moving efficiency with Barford’s SK10, the ‘true’ 10 tonne site dumper. Powered by a 94kw turbo charged, inter-cooled engine, the SK10 sets new standards in productivity, surpassing smaller site dumpers in its stride. Heavy duty axles and a rigid chassis work in harmony with high floatation tyres to maximise traction in difficult terrain.

SK10 features superior skip geometry and a wide rear chassis with a low centre of gravity for increased stability. Despite its massive capacity SK10 also maintains a ‘footprint’ appropriate for loading on to standard transportation. A Joystick allows precise skip control, and rams governed by a hydraulic system, fitted as standard with an ‘over centre valve’, provide even and safe tipping of the wettest loads.

Dump Truck Hire Specifications

  • Engine Make & Model: Iveco N45 MNTD 94kW @ 2300rpm
  • Gross Power: 4485cc
  • Number of Cylinders: 6
  • Transmission: Powershuttle transmission, 4 speeds forward and reverse with torque converter. Heavy duty drive train.
  • Axles & Brakes: Heavy duty double reduction axles with totally enclosed oil immersed disc brakes.
  • Fuel Capacity: 68L
  • Hydraulic System Fluid Capacity: 40L
  • Wheels & Tyres: 500/60 – 22.5 High ¬floatation tyres 16 ply
  • Road speed kph:
  • 1st gear: 4.8
  • 2nd gear: 7.8
  • 3rd gear: 14.7
  • 4th gear: 26.8

Dimensions and Operating Weight of the 10T Dump Truck

  • Overall length – 4466 mm
  • Overall height – ROPS up – 3246 mm
  • Overall height – ROPS down –2308 mm
  • Overall height – skip tipped –2565 mm
  • Prow height –1787 mm
  • Tipped prow height – 246 mm
  • Side loading height – 2167 mm
  • Wheel base – 2400 mm
  • Ground clearance – 440 mm
  • Overall width – 2485 mm
  • Width over tyres – 2430 mm
  • Outer turning circle – 13 metres
